Weekly review on DH&W devices

14.10.2022

This review presents information on most interesting Digital Health and Wellbeing devices, based on the opinion of OISTER team. Information obtained from public sources or product manufacturers, OISTER is not responsible for the accuracy of information and presentation of all available products on the date of submission of the review.

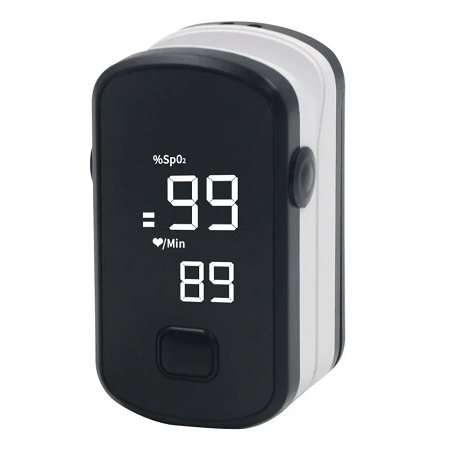

Portable fingertip pulse oximeter with dot screen for SpO2 and pulse rate measurings.

Brands: CEFALY
Trading Companies: Shanghai Berry Electronic Technology Co., Ltd
Development status: pre-orders/mass production

Specification:

  • On-body Device: Finge
  • Human Body Organ Systems: Respiratory System; Cardiovascular System
  • Battery Size: AAA
  • Length, mm: 63
  • Height, mm: 30
  • Width, mm: 34
  • Weight, g: 50
  • Display matrix type: LED
  • Working Principle: measuring
  • Measurings Subcategory: heart rate; saturation
  • App: no
  • Product Color: Black+White;
  • Working Voltage: DC 2.2V~DC 3.4V;
  • Temperature: 5ºC~40ºC;
  • Relative humidity: 15% ~80%;
  • Air pressure: 860hpa~1060hpa;
  • SpO2: Measurement range: 35~100%;
  • Accuracy: ±2% (80%~100%); ±3%(70%~79%);
  • Pulse Rate: Measurement range: 25~250bpm;
  • Accuracy: ±2bpm;
  • Resolution: 1bpm

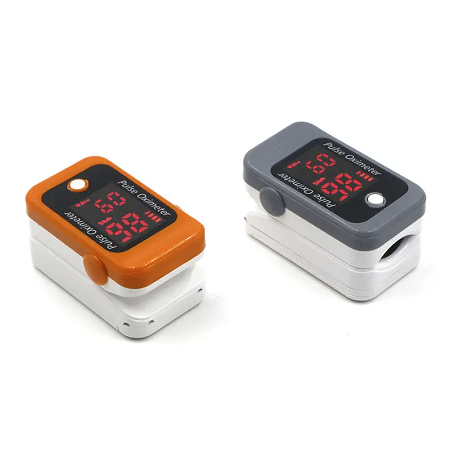

Portable fingertip pulse oximeter with dot screen for SpO2 and pulse rate measurings.

Brands: Berry
Trading Companies: Shanghai Berry Electronic Technology Co., Ltd
Development status: pre-orders/mass production

Specification:

  • Human Body Organ Systems: Cardiovascular System; Respiratory System
  • Battery Size: AAA
  • On-body Device: Finger
  • Length, mm: 63
  • Height, mm: 30
  • Width, mm: 34
  • Weight, g: 50
  • Display matrix type: LED
  • Working Principle: measuring
  • Measurings Subcategory: heart rate; saturation
  • App: no
  • Product Color: Black+White;
  • Working Voltage: DC 2.2V~DC 3.4V;
  • Temperature: 5ºC~40ºC;
  • Relative humidity: 15% ~80%;
  • Air pressure: 860hpa~1060hpa;
  • SpO2: Measurement range: 35~100%;
  • Accuracy: ±2% (80%~100%); ±3%(70%~79%);
  • Pulse Rate: Measurement range: 25~250bpm;
  • Accuracy: ±2bpm;
  • Resolution: 1bpm

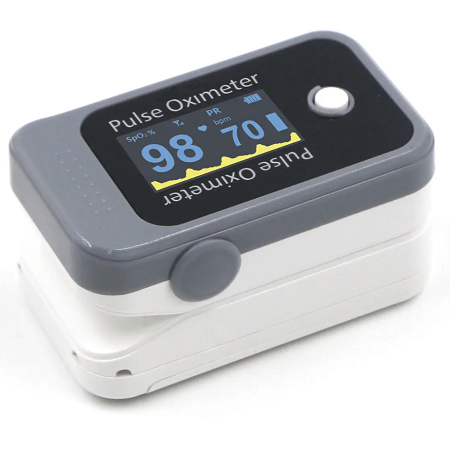

Portable 4G fingertip pulse oximeter based on loT with immediately upload the data to the server through the 4G network. It is also applicable to the monitoring of elderly care, medical rehabilitation and clinical departments in hospitals. 4G fingertip pulse oximeter based on loT. Patients only need to clip the pulse oximeter on any fingers to measure the user’s blood oxygen (SpO2) and pulse rate (PR), and immediately upload the data to the server through the 4G network.

Brands: Berry
Trading Companies: Shanghai Berry Electronic Technology Co., Ltd
Development status: pre-orders/mass production

Specification:

  • On-body Device: Finger
  • Human Body Organ Systems: Respiratory System; Cardiovascular System
  • Battery Size: AAA
  • Length, mm: 63
  • Height, mm: 30
  • Width, mm: 34
  • Weight, g: 50
  • Display matrix type: LED
  • Working Principle: measuring
  • Measurings Subcategory: heart rate; saturation
  • App: no
  • RPM Health Platform;
  • Non-contact operation, remote monitoring.
  • Measurement and upload in normal conditions over 500 times.
  • Accept different OEM requirements.
  • Supplied by 4G,NB-loT or other wireless connectivity;
  • CE0123 FDA NMPA FCC ISO13485

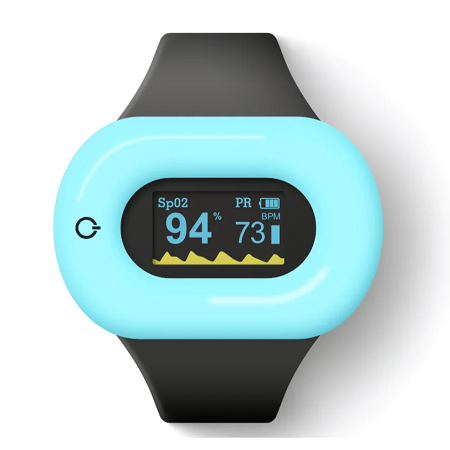

Bluetooth wrist rechargeable oximeter is small, lightweight, and available for home use as well as clinics with OLED display for SpO2, pulse rate, pulse intensity bargraph, and plethysmogram. High accuracy under the condition of low perfusion. Low power consumption.

Brands: Berry
Trading Companies: Shanghai Berry Electronic Technology Co., Ltd
Development status: pre-orders/mass production
Retail price, US$: 99

Specification:

  • Human Body Organ Systems: Cardiovascular System; Respiratory System
  • Battery Size: AA
  • On-body Device: Wrist
  • Length, mm: 37
  • Height, mm: 55
  • Width, mm: 18
  • Weight, g: 50
  • Connectivity Technology: bluetooth
  • Device shape: square
  • Display matrix type: OLED
  • Battery Material Type: lithium ion
  • Working Principle: measuring
  • Measurings Subcategory: saturation; heart rate
  • App: no
  • Service life: Over 10000 times;
  • Working Voltage: D.C.3.4V~D.C.4.3V;
  • Temperature: 5ºC~40ºC;
  • Relative humidity: 15%~80%;
  • Air pressure: 860hpa~1060hpa;
  • Parameters: SpO2 / PR;
  • Relative humidity: 15% ~80%;
  • Air pressure: 860hpa~1060hpa;
  • SpO2: Measurement range: 35~100%; Accuracy: ±2% (80%~100%); ±3%(70%~79%)
  • Pulse Rate: Measurement range: 25~250bpm; Accuracy: ±2bpm; Resolution: 1bpm
  • Watch type, light weight;
  • Simple and convenient, get all function  with one touch button;
  • Color OLED display of SpO2, Pulse Rate, Pulse intensity bargraph, and Plethysmogram, indication of battery, Bluetooth.

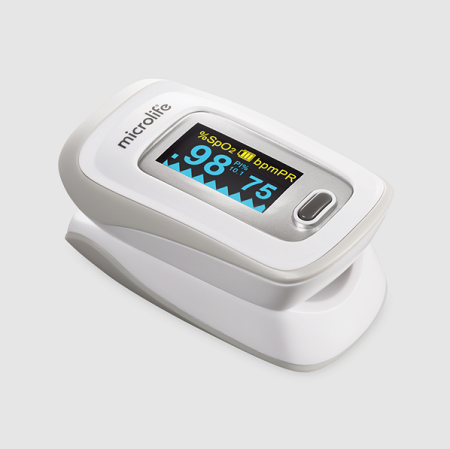

The Microlife OXY 210 fingertip pulse oximeter with OLED display is a portable non-invasive device with automatic switch-off intended for spot-checking of the oxygen saturation of arterial hemoglobin (SpO2) and pulse rate of adults and pediatric patients. It is suitable for private use (at home, or on the go) as well as for use in the medical sector (hospitals, hospital-type facilities).

Brands: Microlife
Trading Companies: Microlife Corporation
Development status: pre-orders/mass production

Specification:

  • Human Body Organ Systems: Respiratory System
  • Battery Size: AAA
  • Length, mm: 62
  • Height, mm: 37
  • Width, mm: 32
  • Weight, g: 56
  • Display matrix type: OLED
  • Battery life, hours: 30
  • Measurings Subcategory: saturation
  • App: no
  • Display range: Oxygen saturation: 35 – 100 %;
  • Pulse rate: 25 – 250 bpm;
  • Resolution: Oxygen saturation: 1%;
  • Pulse rate: 1 bpm;
  • Measurement precision: Oxygen saturation: ±2 % (70 – 100 %);
  • No requirement: (≤ 69 %);
  • Pulse rate: ± 2 bpm;
  • Alert range:
  • Oxygen saturation: Upper limit: 50 – 100 %;
  • Lower limit: 50 – 100 %;
  • Pulse rate: Upper limit: 25 – 250 bpm;
  • Lower limit: 25 – 250 bpm;
